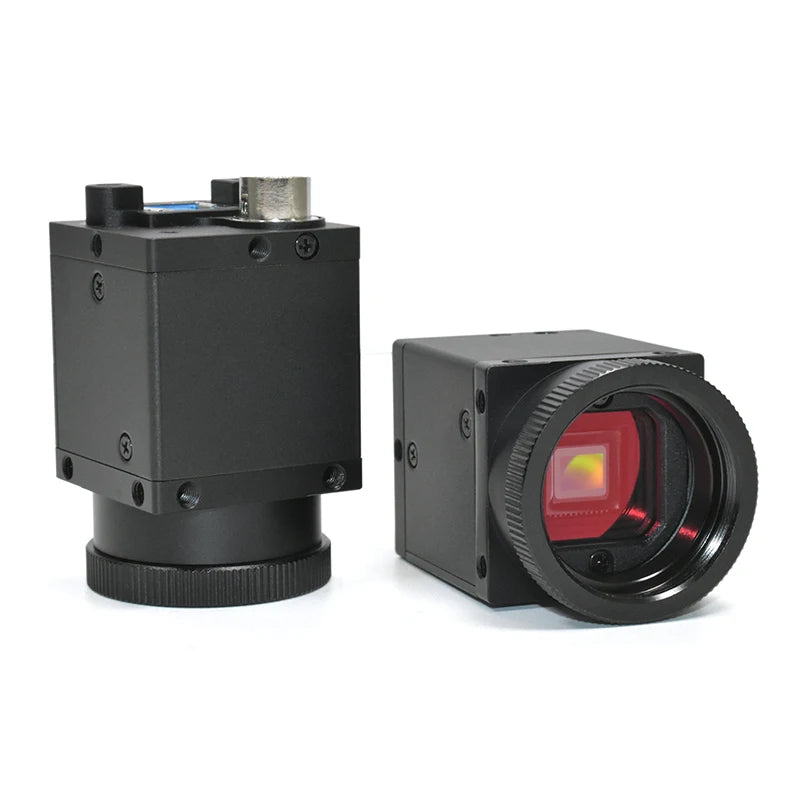

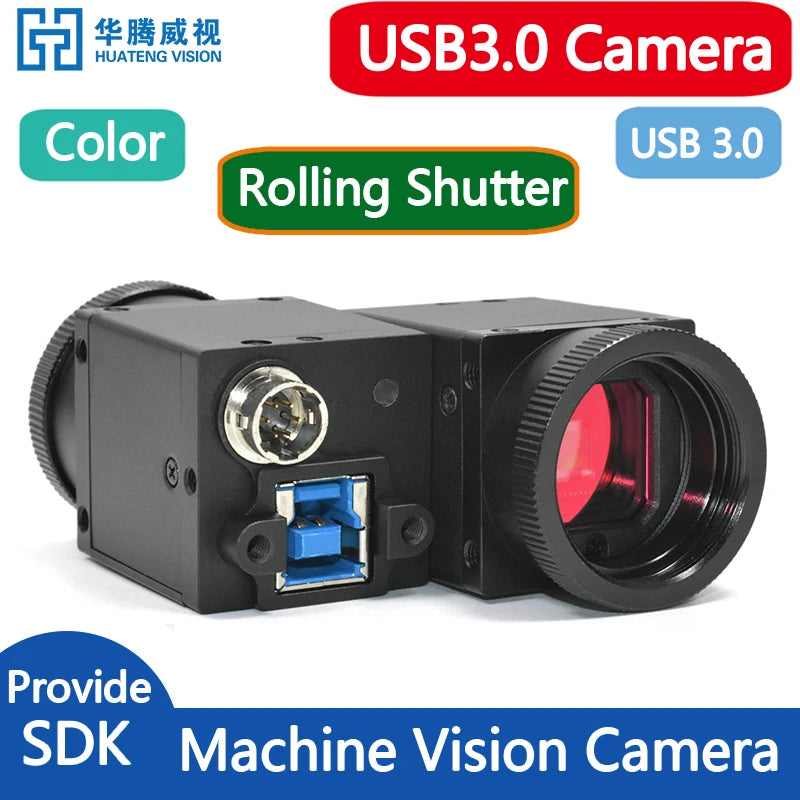

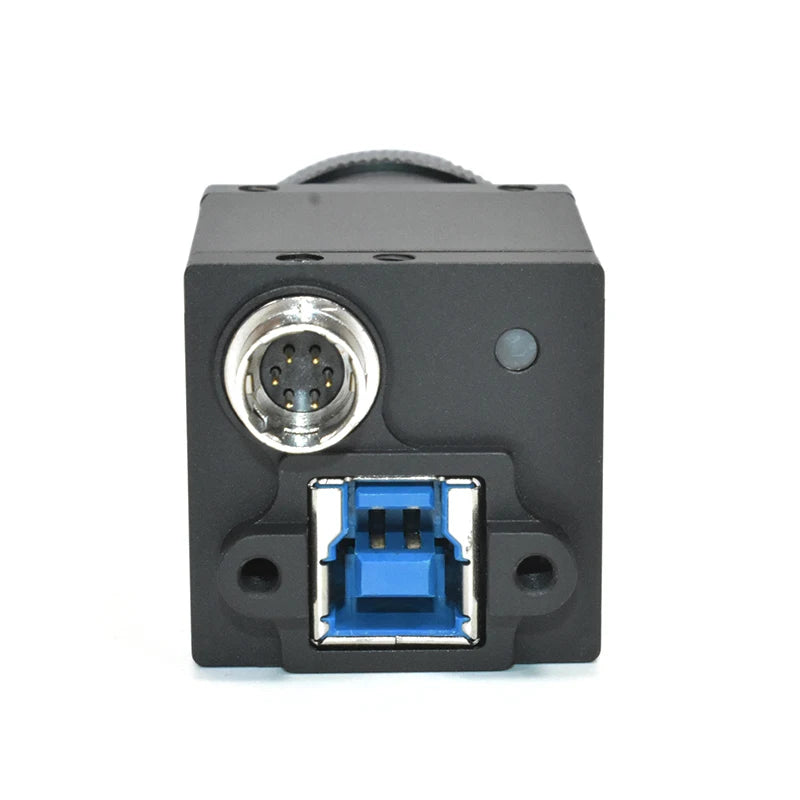

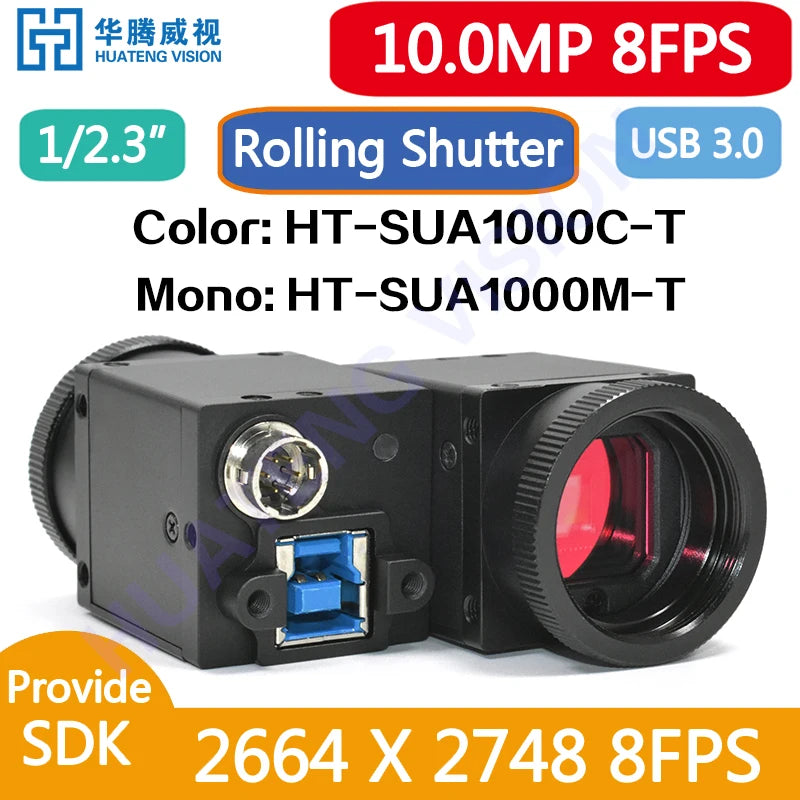

High Speed USB3.0 Machine Vision Industrial Digital Camera Color Scroll Shutter NIR With SDK Windows Linux

High Speed USB3.0 Machine Vision Industrial Digital Camera Color Scroll Shutter NIR With SDK Windows Linux

$373.67 CAD
$0.00 CAD $373.67 CAD
Sale Sold out
Color
Magnification

SPECIFICATIONS

Battery Included: No

Brand Name: HUATENGVISION

Certification: None

Colour: Color/Monochrome

Connection Method: USB 3.0

Drawtube: N

Features: High Definition

HD Support: 5.0~20.0 Megapixels

High-concerned chemical: None

Is Smart Device: No

Lens Interface: C Mouth

Magnification Ratio: 500X & Under

Material: Metal

Model Number: HT-SUA502~2000C-T

Origin: Mainland China

Sensor Type: CMOS

Shutter Type: Rolling Shutter

Theory: Video Microscope

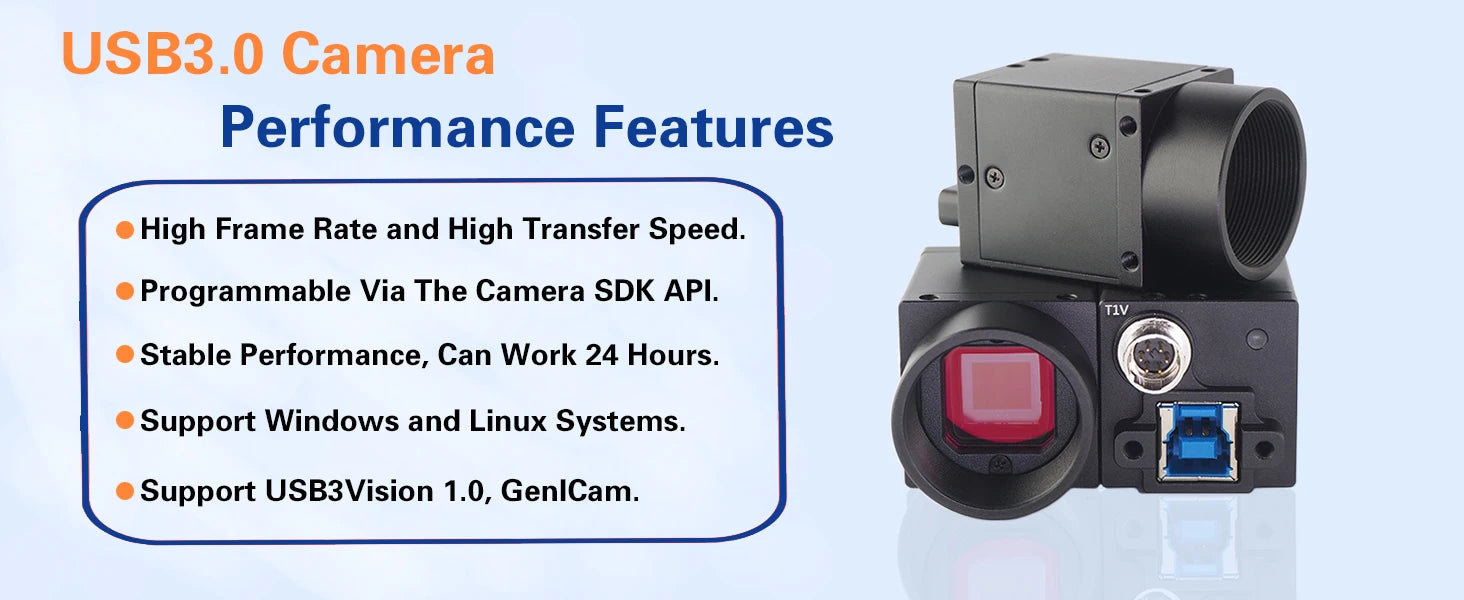

USB3.0 Series Features:
1) Camera transfer speed is fast.
2) Compatible with U3VISION vision standard.
3) High frame rate camera, 0.3MP 790FPS, 1.3MP 210FPS, 4.0MP 88FPS, 20.0MP 20FPS.
4) Support multiple cameras to work at the same time.
5) Data packet retransmission technology to ensure reliable data transmission.
6) Provide SDK, easy to use and convenient.
7) Support external trigger and flash.
8) SDK supports Windows and Linux systems.

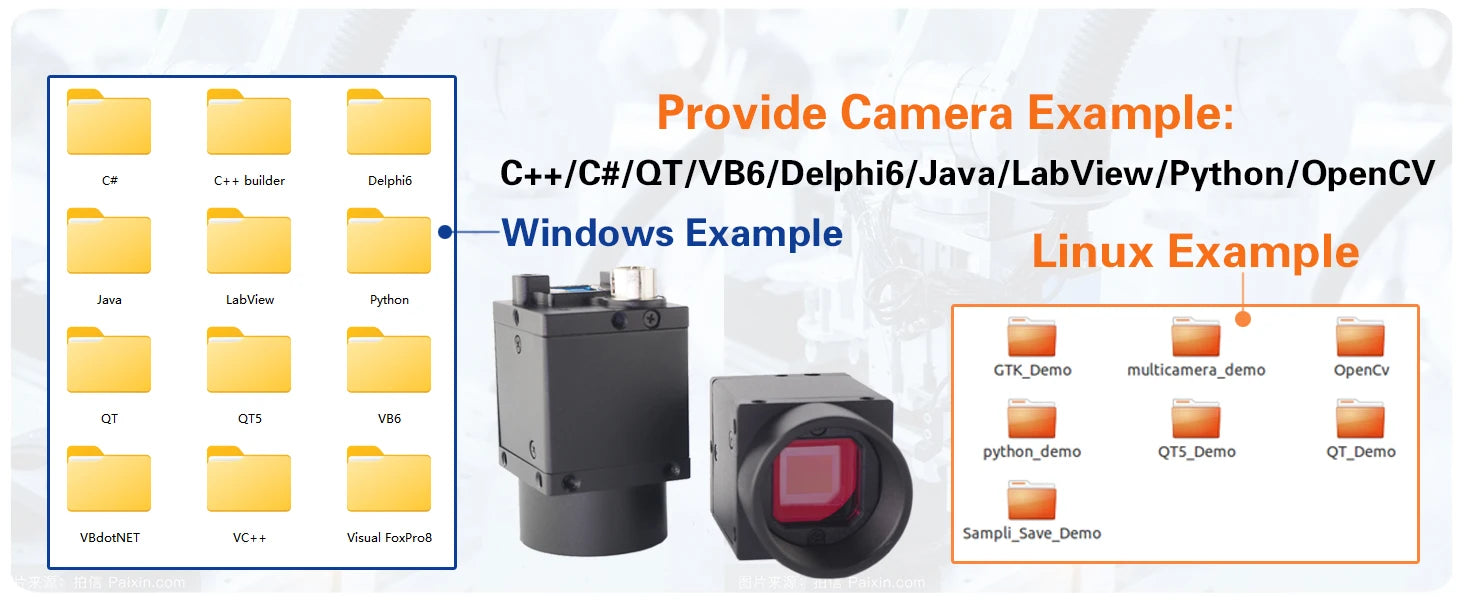

9) SDK supports VC/C++, VB6, VB.NET, Delphi, C#, JAVA, Python, OpenCV.

Product Feature:
1) Camera parameter archive is saved as a file.
2) Camera name can be modified to easily distinguish multiple cameras.
3) With a maximum of 16K bytes of data storage.
4) Support 8bit, 24bit, 32bit image format output.
5) Ethernet, USB3.0, and USB2.0 camera SDK are the same.

Package incluede:
1 x Industrial Camera (No include lens)
1 x 3 Meters  Cable
1 x Trigger line

Industrial Camera Parameters：

Model

Pixel

Resolution

Frame rate

Shutter Type

Sensor

Pixel Size

Bit Depth

Color

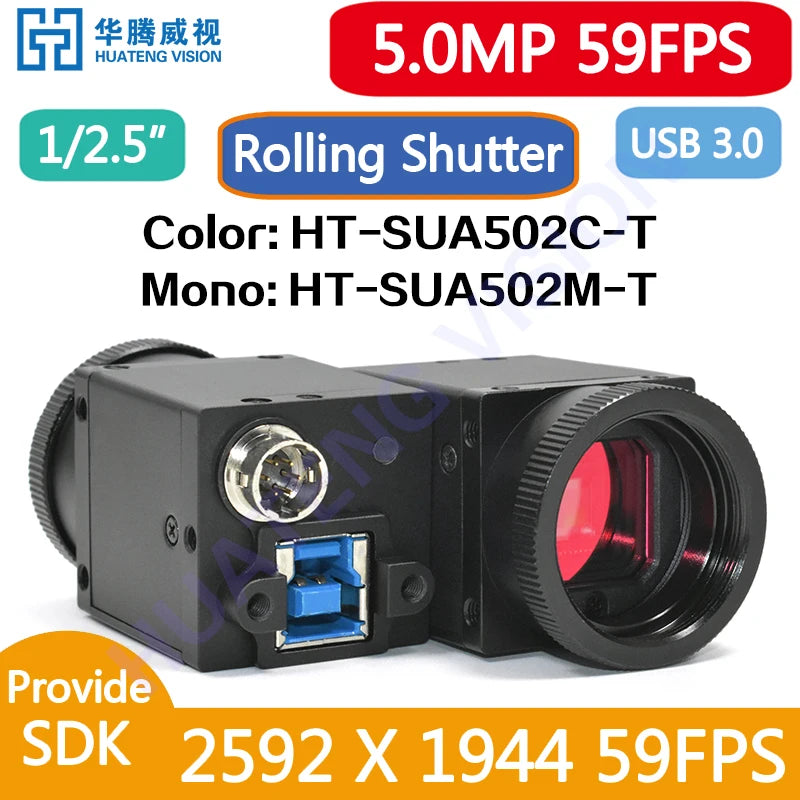

HT-SUA502C

5.0MP

2592X1944

59 FPS

Rolling Shutter

1/2.5" AR0521

2.2μm

10 bit

Color

HT-SUA502M

5.0MP

2592X1944

59 FPS

Rolling Shutter

1/2.5" AR0521

2.2μm

10 bit

Mono

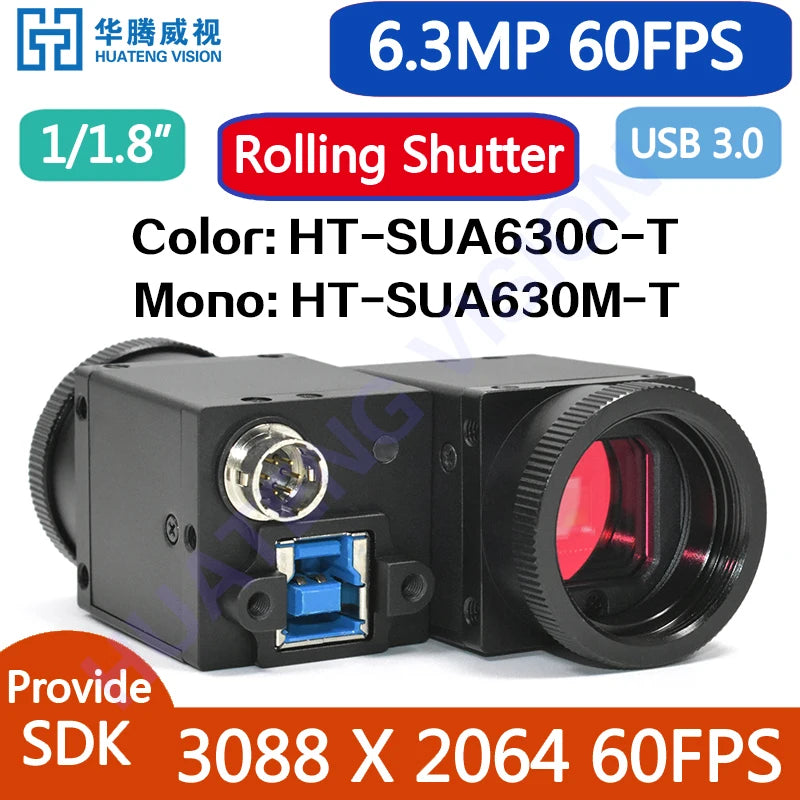

HT-SUA630C

6.3MP

3088X2064

60 FPS

Rolling Shutter

1/1.8" IMX178

2.4μm

8 bit

Color

HT-SUA630M

6.3MP

3088X2064

60 FPS

Rolling Shutter

1/1.8" IMX178

2.4μm

8 bit

Mono

HT-SUA1000C

10.0MP

3664X2748

8 FPS

Rolling Shutter

1/2.3" MT9J003

1.67μm

12 bit

Color

HT-SUA1000M

10.0MP

3664X2748

8 FPS

Rolling Shutter

1/2.3" MT9J003

1.67μm

12 bit

Mono

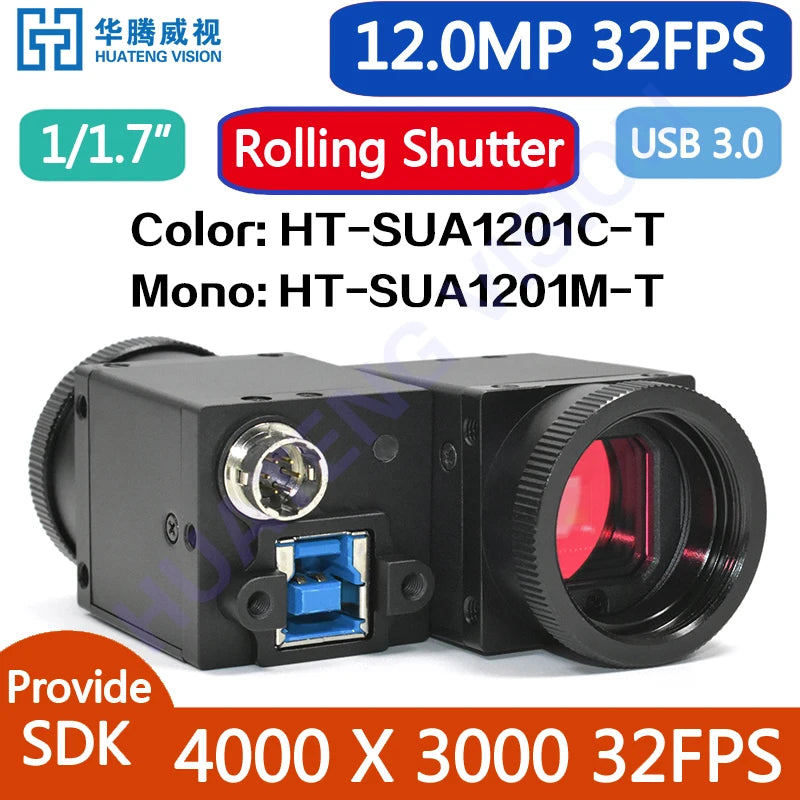

HT-SUA1201C

12.0MP

4000X3000

32 FPS

Rolling Shutter

1/1.7" IMX226

1.85μm

8 bit

Color

HT-SUA1201M

12.0MP

4000X3000

32 FPS

Rolling Shutter

1/1.7" IMX226

1.85μm

8 bit

Mono

HT-SUA1600C

16.0MP

4608X3456

12 FPS

Rolling Shutter

1/2.3" IMX206

1.34μm

12 bit

Color

HT-SUA1600M

16.0MP

4608X3456

12 FPS

Rolling Shutter

1/2.3" IMX206

1.34μm

12 bit

Mono

HT-SUA2000C

20.0MP

5488X3672

19.5 FPS

Rolling Shutter

1" IMX183

2.4μm

8 bit

Color

HT-SUA2000M

20.0MP

5488X3672

19.5 FPS

Rolling Shutter

1" IMX183

2.4μm

8 bit

Mono

HT-SUA800C

8.0MP

3840X2160

45 FPS

Rolling Shutter

1/1.8" OEM

2.0μm

12 bit

Color

HT-SUA800M

8.0MP

3840X2160

45 FPS

Rolling Shutter

1/1.8" OEM

2.0μm

12 bit

Mono

Data Interface

  USB3.0

Synchronization

  • Via free run

  • Via software trigger

  • Via hardware trigger

Exposure Control

  • Programmable via the camera API

  • Via hardware trigger

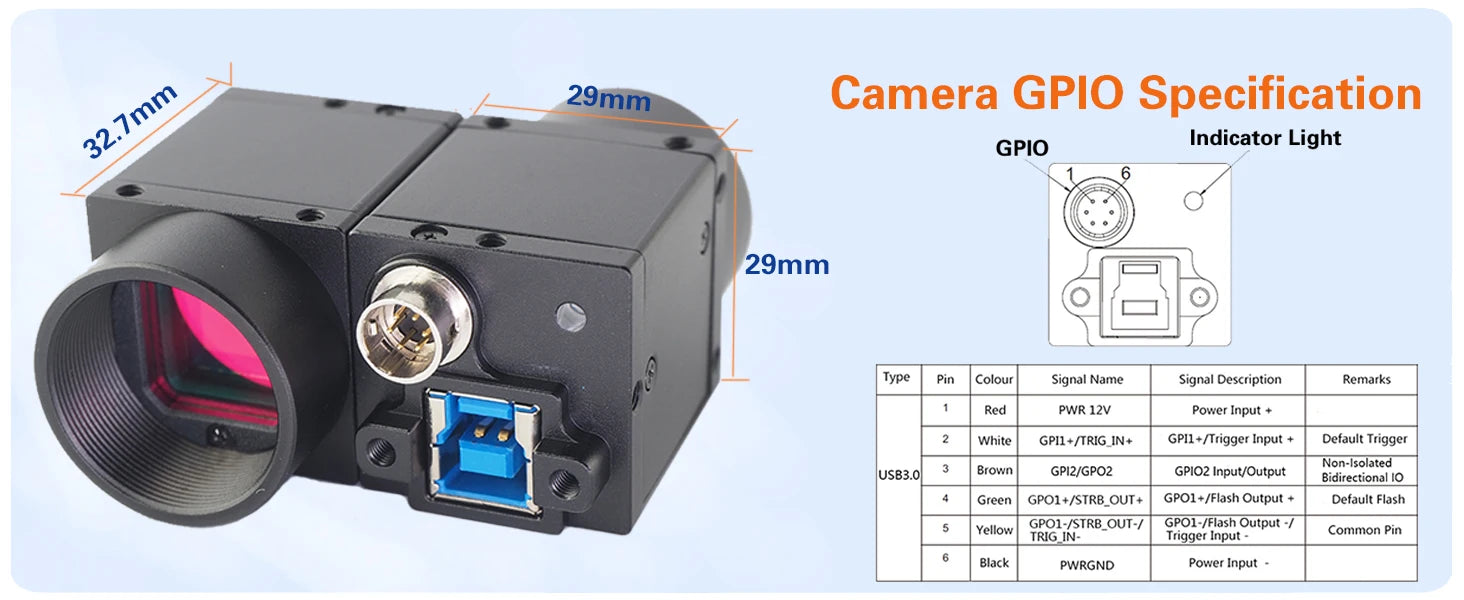

GPIO Digital Input

  x1

GPIO Digital Output

  x1

General I/O

  x1

Power Supply

  9~24V, Supports USB Power Supply.

Power Requirements

  2.8W @ 5 VDC ( USB Powered )

Support System

  Windows 7/10/11 32/64bits and Linux 32/64bits

Vision Standard Protocol

  USB3 Vision v1.2, GenlCam

Programming Language

  C/C /C#/VB6/VB.NET/Delphi/BCB/Python/Java

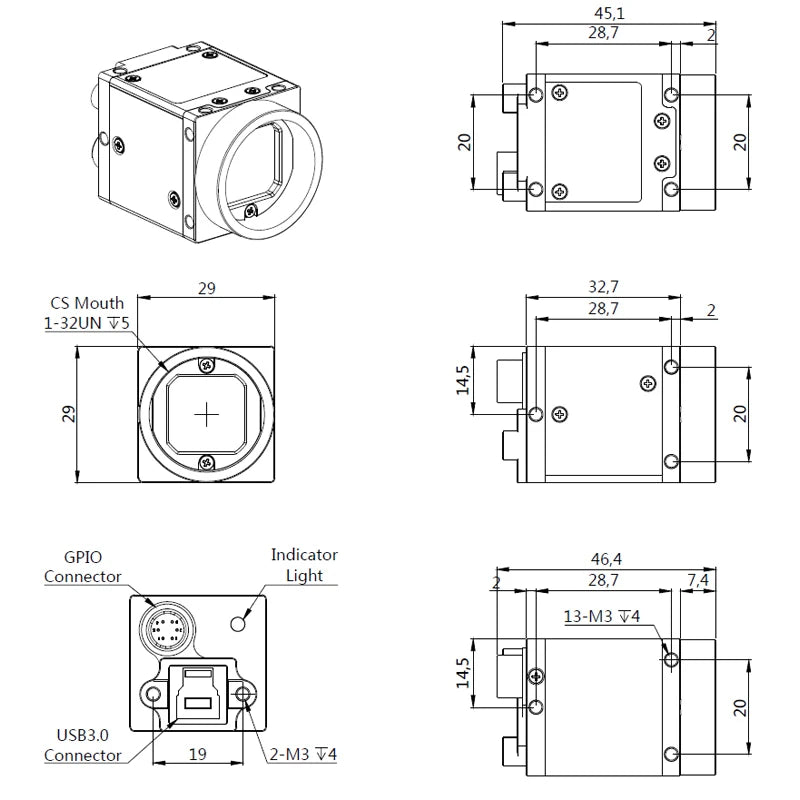

Housing Dimensions

  29mm x 29mm x 32.7mm

Lens Mount

  C- Mount

Operating Temperature

  0 - 50°C

Weight

  75g

Function

  ROI Custom Resolution, Contrast and Gamma Adjustment, Saturation Adjustment,3D Noise Reduction,

  Custom Camera Name, Etc.




Machine Vision Software:
